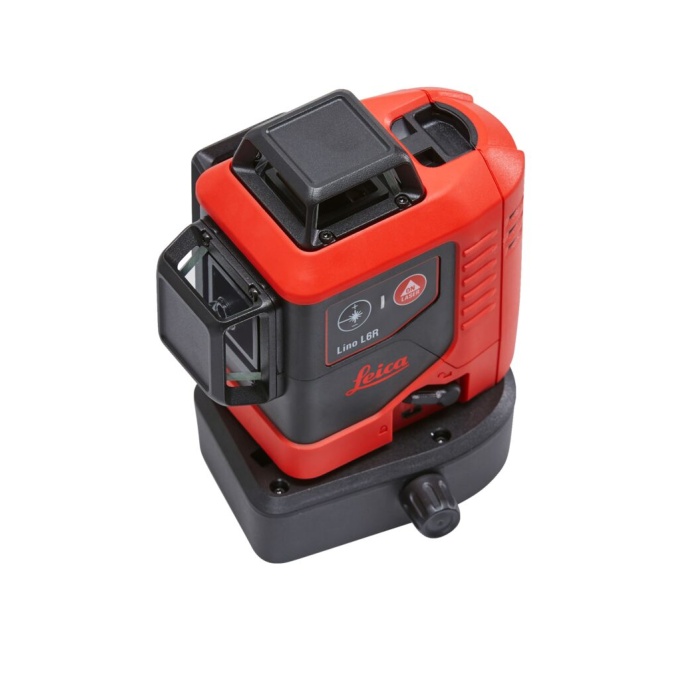

360° ALIGNMENT WITH OUTSTANDING VISIBILITY
Horizontal and two vertical 360° red laser lines
High visibility due to red Ultra-power laser diodes
Self-leveling over wide range
Fixed plumb point due to integrated base
Adjustable strength of laser lines
Operating range of up to 25 metres
Li-Ion power for up to 36 h operation
Uninterrupted working with Triple-Power concept
Smart magnetic adapters for easy positioning
Li-Ion power lasts for hours. There is no interruption to your work for battery charging and no need to constantly exchange Alkaline batteries.
The Leica Lino automatically adjusts its positioning if it is slightly out of level (up to ± 4°). If the tilt is outside the limit, the instrument activates a visual alert to prevent errors.
Save your laser line settings and their intensity on the device so it is ready to use when it’s turned on.
Run your laser with Li-Ion, Alkaline or connect it to the power supply. Continue working with the smart triple power concept.
The Leica Linos are dust and spray water protected. This makes them tough instruments suitable for today’s jobsite conditions
The vertical laser lines projected to walls and ceilings are easily adjusted once the plumb point is set. The integrated base of the line laser allows you to position the cross section (plumb point) of the two vertical laser lines where required and then adjust the laser lines by ± 10° while keeping the position of the plumb point.

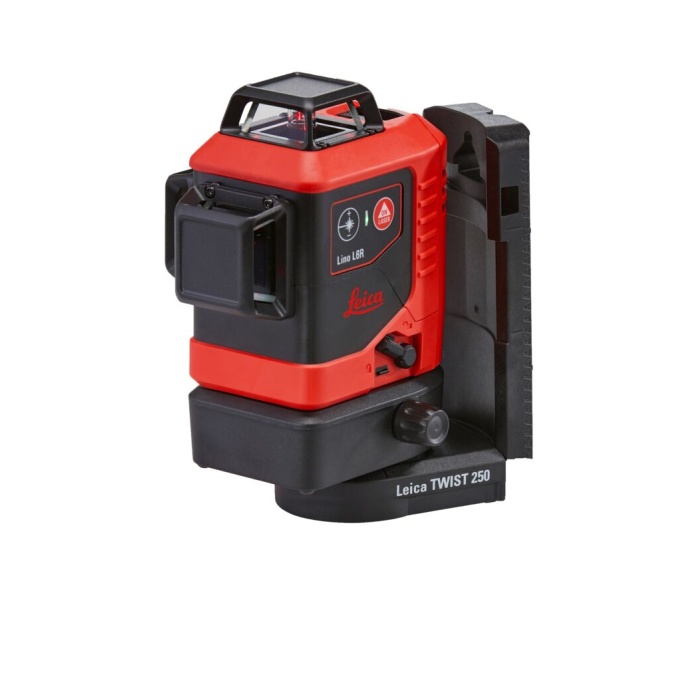

Magnetic adapters allow you to position the instrument quickly and with absolute precision. Set-up the rotatable adapters over edges and profiles, attach it to iron pipes or various tracks and bars. The triple power concept allows for continuous operation of the line laser. It can be operated with Li-Ion and Alkaline batteries or alternatively with its charger.

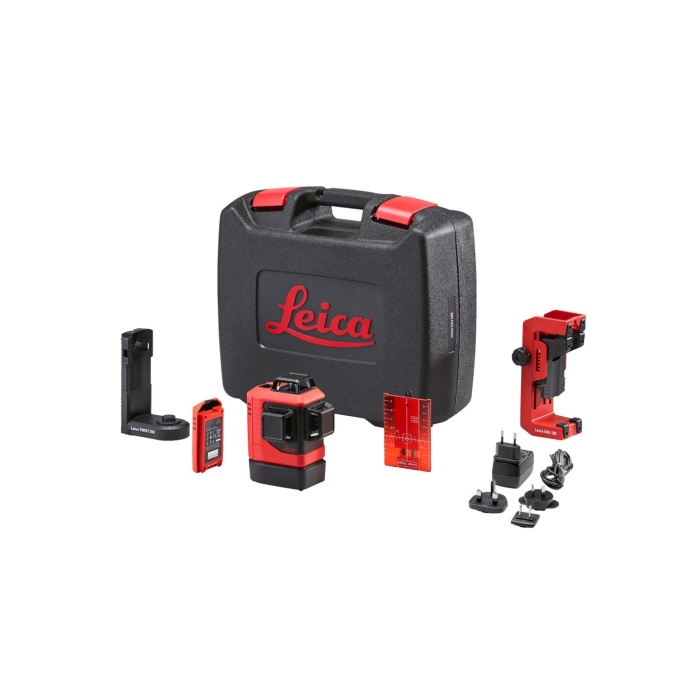

In The Box
- Leica Lino L6R
- Quick start guide
- Rugged case
- Li-Ion battery pack incl. charger and plugs
- Alkaline battery tray
- Laser target
- TWIST 250 magnetic multi functional adapter
- UAL 130 wall-mount adapter
- Safety instructions
- Calibration certificate
- Warranty card
