Adjustable Tilt Monument Mounts for 1.5-inch pipe with MPT 1-1/2 x 11-1/2 TPI

Description

  • For 1.5-inch pipe with MPT 1-1/2 x 11-1/2 TPI
  • The adapters have 3.20-inch (8.19 cm) diameters and overall heights of 3.036 inches (7.71 cm)

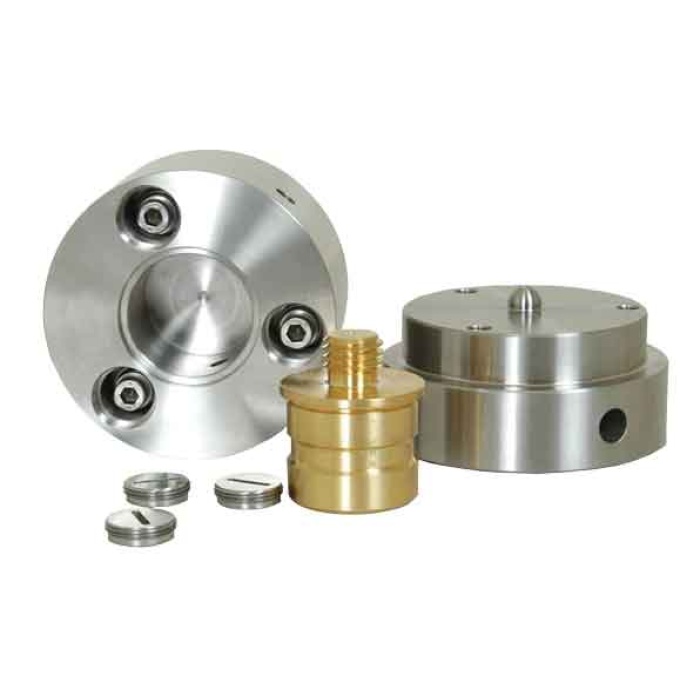

  • Includes a removable brass 5/8 x 11 male stud that is adjustable in azimuth and held in location by two set screws
  • Leveled by three screws with a tilt range +/- 7°
  • The height above the pivot point to the stud shoulder is 1.37 inches (3.50 cm)
  • The height below the brass 5/8 stud to the shoulder is 0.463 inches (1.18 cm)

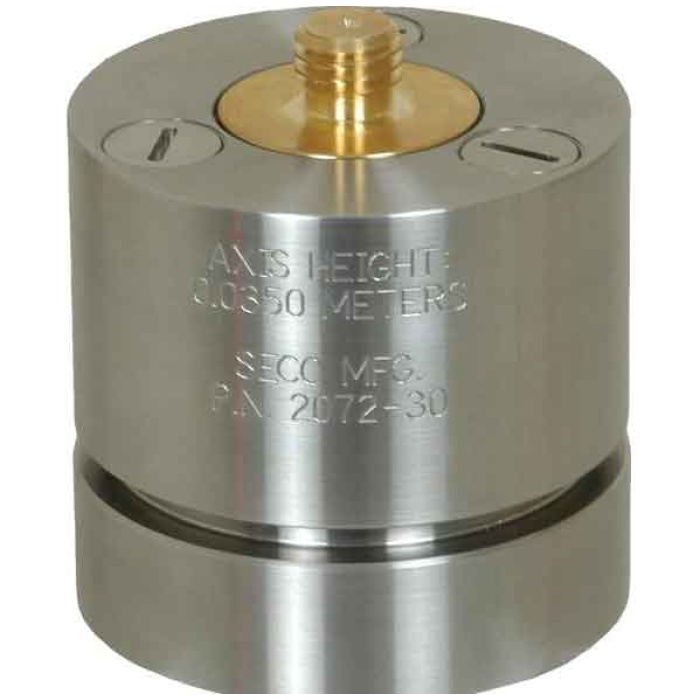

  • The axis height is engraved on the outside of the monuments
  • Weighs 5.50 lb (2.50 kg)
